Diffusion Beam 5
Email
Download
View
Diffusion Beam 5 , wall and ceiling mounted, in extruded aluminum minimal design lighting fixture with remote drivers (max 60' from fixture).
Even illumination at highest lumen output. 960 lumens delivered per foot, 12 w/foot. Dimmable and non dimmable. Lighting module width 3.25".

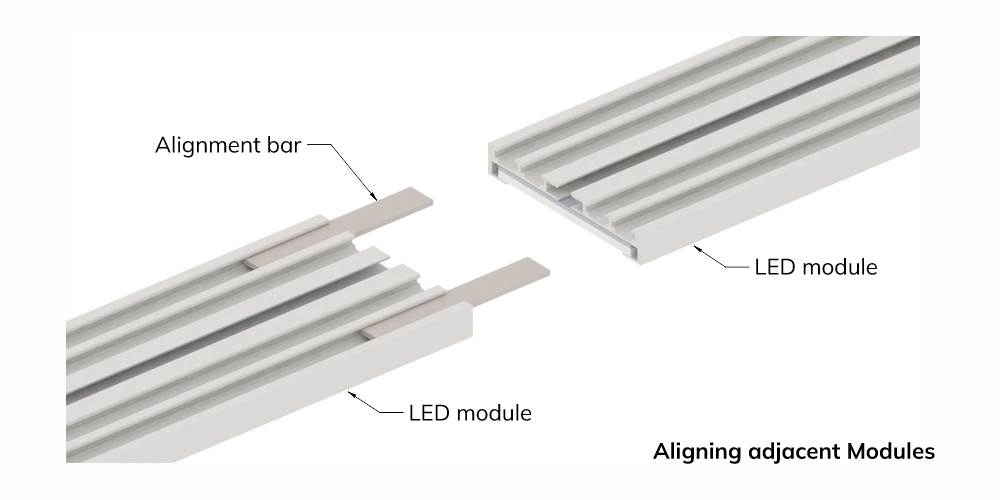

Possible runs. Horizontal and / or vertical.
Even illumination at highest lumen output. 960 lumens delivered per foot, 12 w/foot. Dimmable and non dimmable. Lighting module width 3.25".
Possible runs. Horizontal and / or vertical.
Diffusion Beam 5
Diffusion / Ceiling/Wall
specialty lighting reserves the right to make changes without prior notice. (03.11.2025)
Diffusion Beam 5 , wall and ceiling mounted, in extruded aluminum minimal design lighting fixture with remote drivers (max 60' from fixture).
Even illumination at highest lumen output. 960 lumens delivered per foot, 12 w/foot. Dimmable and non dimmable. Lighting module width 3.25".
Possible runs. Horizontal and / or vertical.
Even illumination at highest lumen output. 960 lumens delivered per foot, 12 w/foot. Dimmable and non dimmable. Lighting module width 3.25".
Possible runs. Horizontal and / or vertical.
DiffusionBeam
Beam
Diffusion
5
Bedi5 -
Output
35HO - 3500 K 960 lumens / ft 12 w /ft
35 - 500 K 640 lumens / ft 6 w /ft
40HO - 40HO - 4000 K 960 lumens / ft 12 w /ft
40 - 4000 K 640 lumens / ft 6 w /ft
2700 K and 3000 K available for special ordering
Consult factory for other color temperatures
Finish
WH - White
BK - Black
CU - Custom color
Specify RAL color
Dimming
4 - Dimmable 0-10v (4wires, 120 or 277 v)
1 - Non Dimmable 277v
0 - Non Dimmable 120v
Installation
Ce - Ceiling
Wa - Wall
Runs
B - 2' nominal 23" LED module
C - 3' nominal 35 LED module
D - 4' nominal 47'' LED module
E - 5' nominal 59" LED module
F - 6' nominal 71" LED module
G - 7' nominal 83" LED module
H - 8' nominal 95" LED module
Total Run: (0 ft 0 in)
Wall installation module max length 6'
Emergency
00 - No Emergency
EM - Emergency
Max 4'
Notes:
McAdam 3 Bin
max distance to drivers 60'
CRI >90
max distance to drivers 60'
CRI >90
