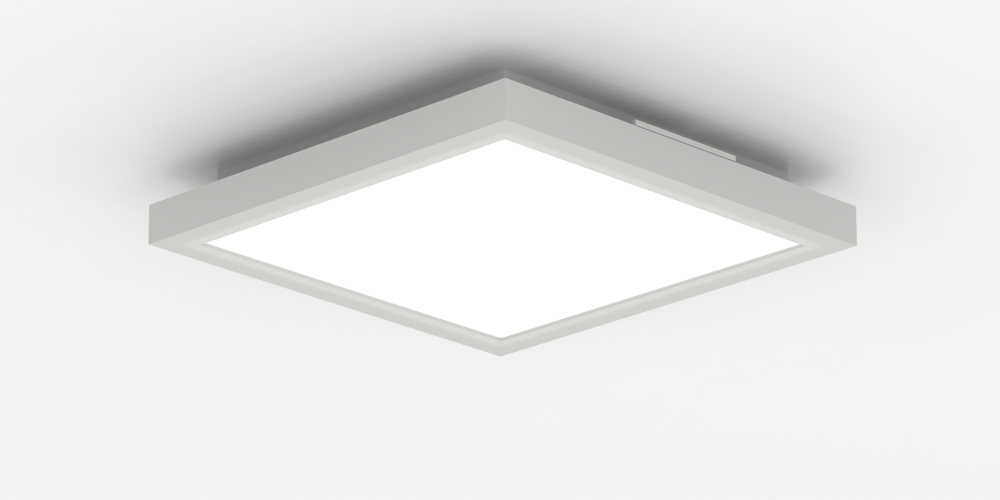

Quadrate 5 Ceiling Downlight
Email
Download
View
Quadrate 5 Ceiling Downlight, extruded aluminum and wood finish minimal design lighting fixture with remote drivers (max 60' from fixture).
Quadrate 5 Ceiling Downlight powder coated finish with even illumination at highest lumen output. 960 lumens delivered per foot,12 w/foot. Dimmable and non dimmable. Lighting module width 5.25".
Horizontal and / or vertical installation.
Quadrate 5 Ceiling Downlight powder coated finish with even illumination at highest lumen output. 960 lumens delivered per foot,12 w/foot. Dimmable and non dimmable. Lighting module width 5.25".
Horizontal and / or vertical installation.
Quadrate 5 Ceiling Downlight
Quadrate / Ceiling
specialty lighting reserves the right to make changes without prior notice. (06.13.2025)
Quadrate 5 Ceiling Downlight, extruded aluminum and wood finish minimal design lighting fixture with remote drivers (max 60' from fixture).
Quadrate 5 Ceiling Downlight powder coated finish with even illumination at highest lumen output. 960 lumens delivered per foot,12 w/foot. Dimmable and non dimmable. Lighting module width 5.25".
Horizontal and / or vertical installation.
Quadrate 5 Ceiling Downlight powder coated finish with even illumination at highest lumen output. 960 lumens delivered per foot,12 w/foot. Dimmable and non dimmable. Lighting module width 5.25".
Horizontal and / or vertical installation.
Qua5cei
Quadrate
5
Ceiling
Qua5cei -
Lumen Output
35 - 3500 K 810 lumens 10 w
40 - 4000 K 815 lumens 10 w
Other color temperatures available
Installation
Cei - Ceiling
Wa - Wall
Finish
SA - Silver anodized aluminum
BK - Black
CU - Custom Specify RAL color
Dimming Options
4 - Dimmable 0-10v (4wires, 120 or 277 v)
1 - Non dimmable 277v
0 - Non Dimmable 120v
Emergency
00 - No Emergency
EM - Emergency
Notes:
Drivers remote. max 60'
McAdam 3 bin
Wall or Ceiling application
McAdam 3 bin
Wall or Ceiling application
